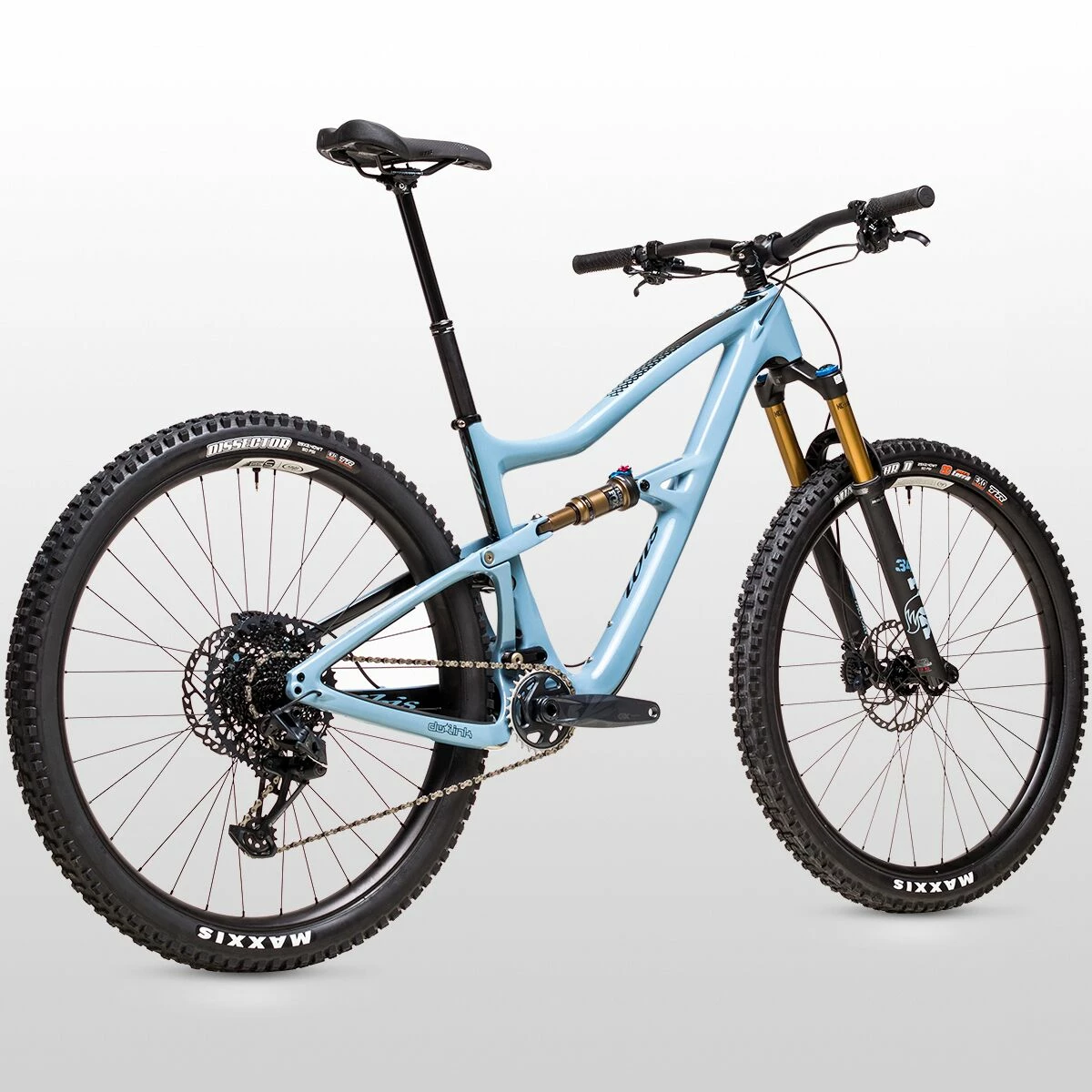

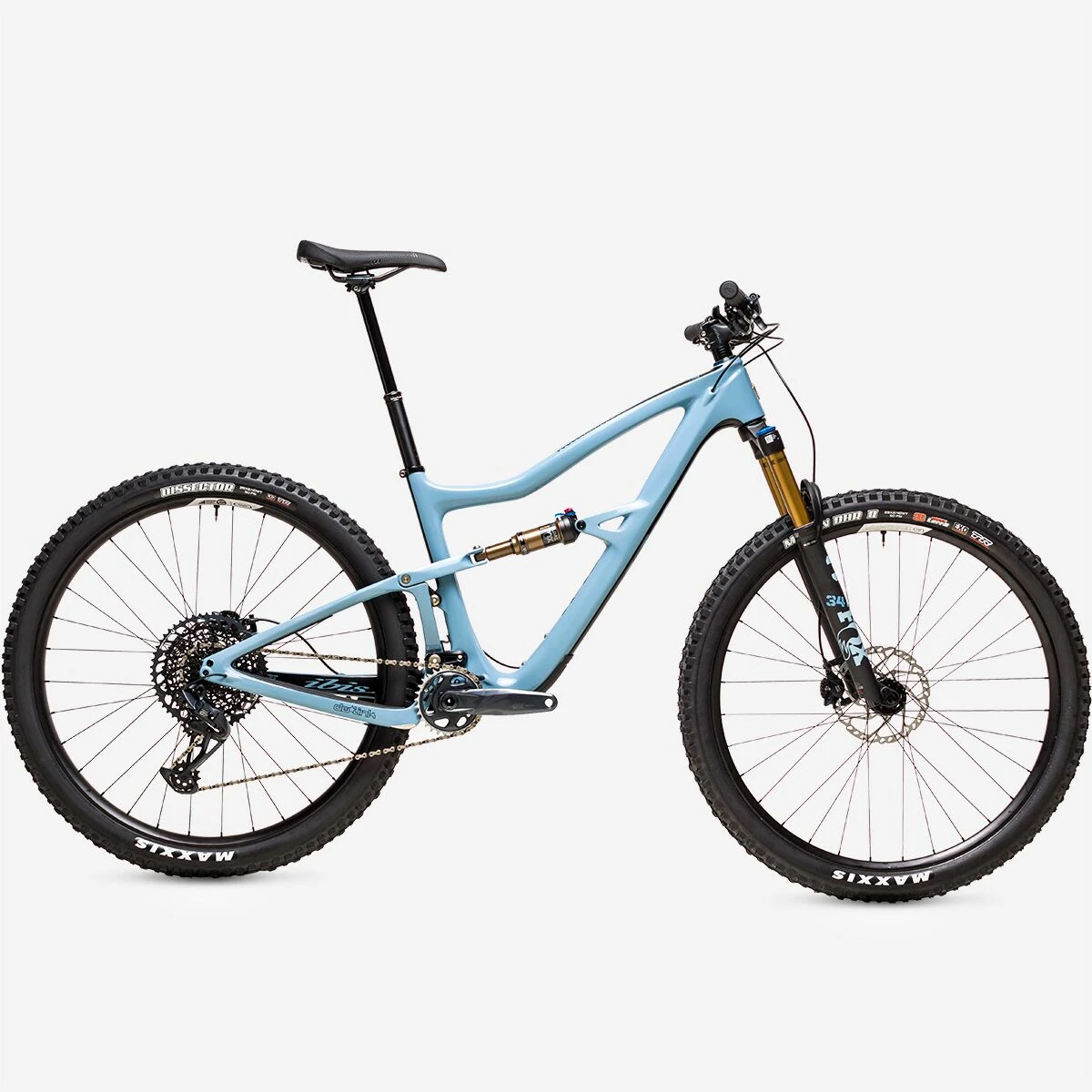

Ibis Ripley GX Eagle Factory Mountain Bike

Why We Like The Ripley GX Eagle Factory Mountain Bike

Ever progressive, and always down for a good time, Ibis’ Ripley blurs the line between cross country rocketship and all-mountain fun machine. While Ibis’ newest iteration of its Ripley GX Eagle Factory Mountain Bike does see a full redesign that does include the modern longer-slacker-steeper treatment, we think it finds a moderate landing place that’s still capable of quick-rolling power and nimble control in XC applications, while offering unwavering support when we head into chunkier, steeper terrain. That’s because the engineers at Ibis didn’t go too overboard. Instead, they opt for just a one-degree shift in the head tube to slacken things, lengthening the wheelbase just a touch to extend the reach in the cockpit to give us a little more room to move around, while the seat tube shifts forward 3-degrees for the perfect perch when we need to attack climbs. The frame is an all-new design that drops weight over the previous generation while bolstering frame stiffness where it’s needed most.

The Ripley 4’s overhaul meant that Ibis’ engineers could start from the ground up, and they chose to start with the heart-and-center of the bike, updating the dual-eccentrics used in the past to a new design based on the Ripmo, which still holds DW-Link suspension tucked neatly in the front triangle, but without as much weight, and with a huge boost in stiffness. This change in the frame’s chassis allows massive weight savings of over a half-pound on the frame alone, giving our all-mountain machine a little more pep in its step when we’re pushing up grueling climbs, and a more nimble feel when we’re flicking it around tight switchbacks.

Weight savings aside, one of the biggest benefits we see with the drop of the double-eccentric design is extra room in the seat tube, which enables taller riders to run dropper posts up to 185mm. This long-dropper length lets Ibis’ engineers carry forward with even more geometry tweaks, like an extra-low standover height, so we can pick our frame based on reach, eliminating seat-tube size from our list of limiting factors on our new bike hunt.

Changes didn’t stop with the eccentrics though, the Ripley has been tweaked all over, including a one-degree slacker headtube for a stretched wheelbase that adds a bit of confidence to the descents, and a three-degree steeper seat tube angle that keeps us in the center of our cockpit perched nicely for climbs. On the rear end of things, Ibis shortened the chainstays by a whopping 12-millimeters to boost stiffness and make the suspension a bit more progressive without letting go of the lively pedaling characteristics of the previous Ripley.

This Ripley is built up with a trustworthy components group that puts money where it matters most without blowing up our budget. That means we get top-of-the-line Fox Factory suspension for the best possible handling and tunability on the trail, paired with a workhorse SRAM GX drivetrain that works as well as XO1 without the hefty price tag. The rest of Ibis’s build kit shows they know what riders want, coming with powerful Shimano SLX brakes, durable Ibis wheels with a wide internal width to support modern tire widths, and a smooth and reliable Bike Yoke Revive dropper post with its unique air bleed function.

*Due to unprecedented demand in the global supply chain and the bike industry over the last 18 months, material weight and exact components are subject to change. We are working diligently to keep tech specs updated, and any adjustments will be minor. If you have any questions, reach out to a Gearhead by chatting online or calling 1-888-276-7130.

Details

• Ibis’s carbon-framed trail bike with a rowdy personality
• Carbon frame construction drops grams for added fun
• DW-Link suspension supports strong pedaling efforts
• Fox Factory suspension outfits ride with confident components
• High-range SRAM GX drivetrain for getting over big hills
• 35mm internal width rims supports up to 2.6in tires
• Size-specific chainstays for a better overall fit

Tech Specs

• Frame Material: carbon
• Suspension: DW-Link

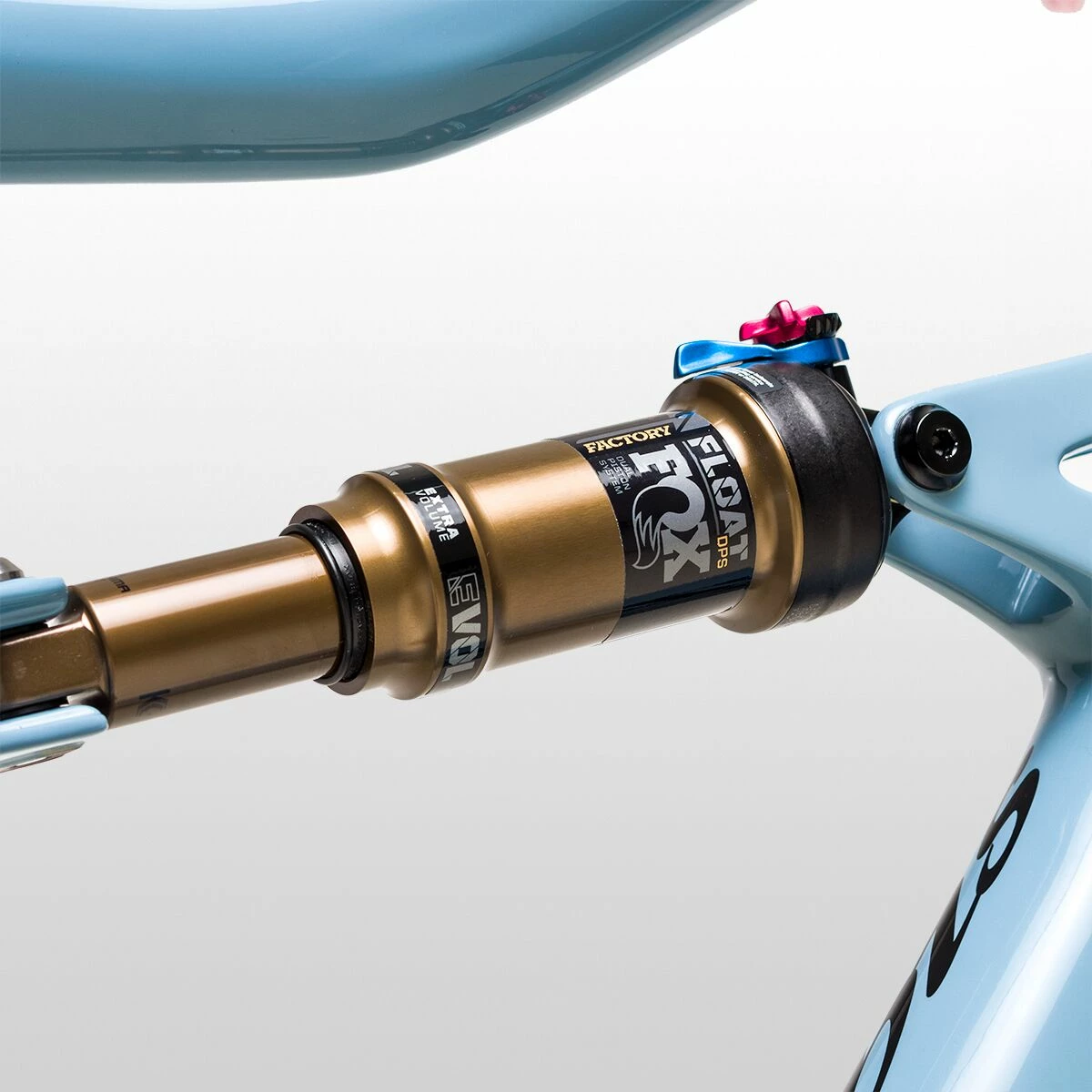

• Rear Shock: Fox Float Factory DPS
• Rear Travel: 120mm
• Fork: Fox Float 34 Factory GRIP2
• Front Travel: 130mm
• Headset: Cane Creek 40 ZS44/ZS56
• Shifters: SRAM GX Eagle

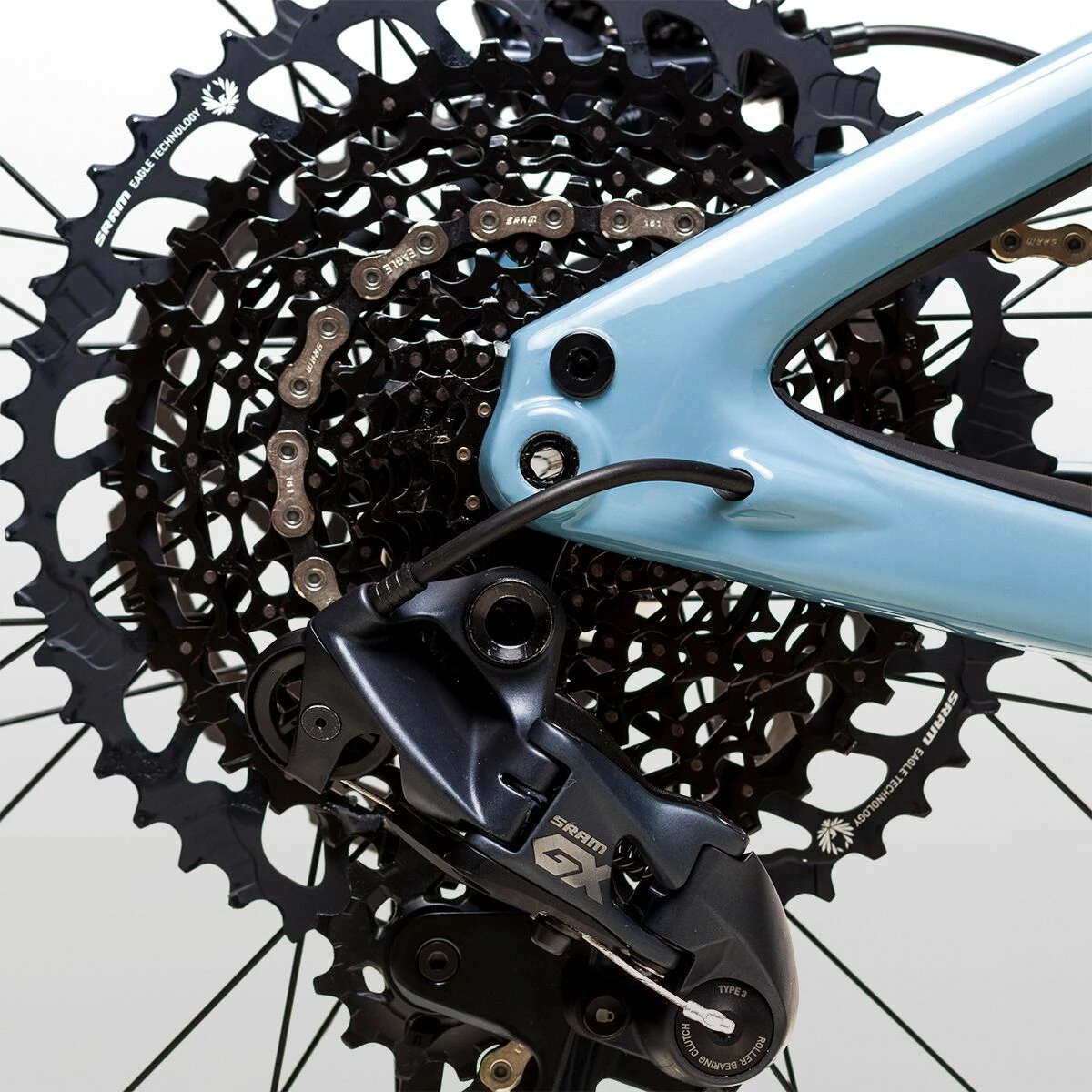

• Rear Derailleur: SRAM GX Eagle
• ISCG Tabs: ISCG-05

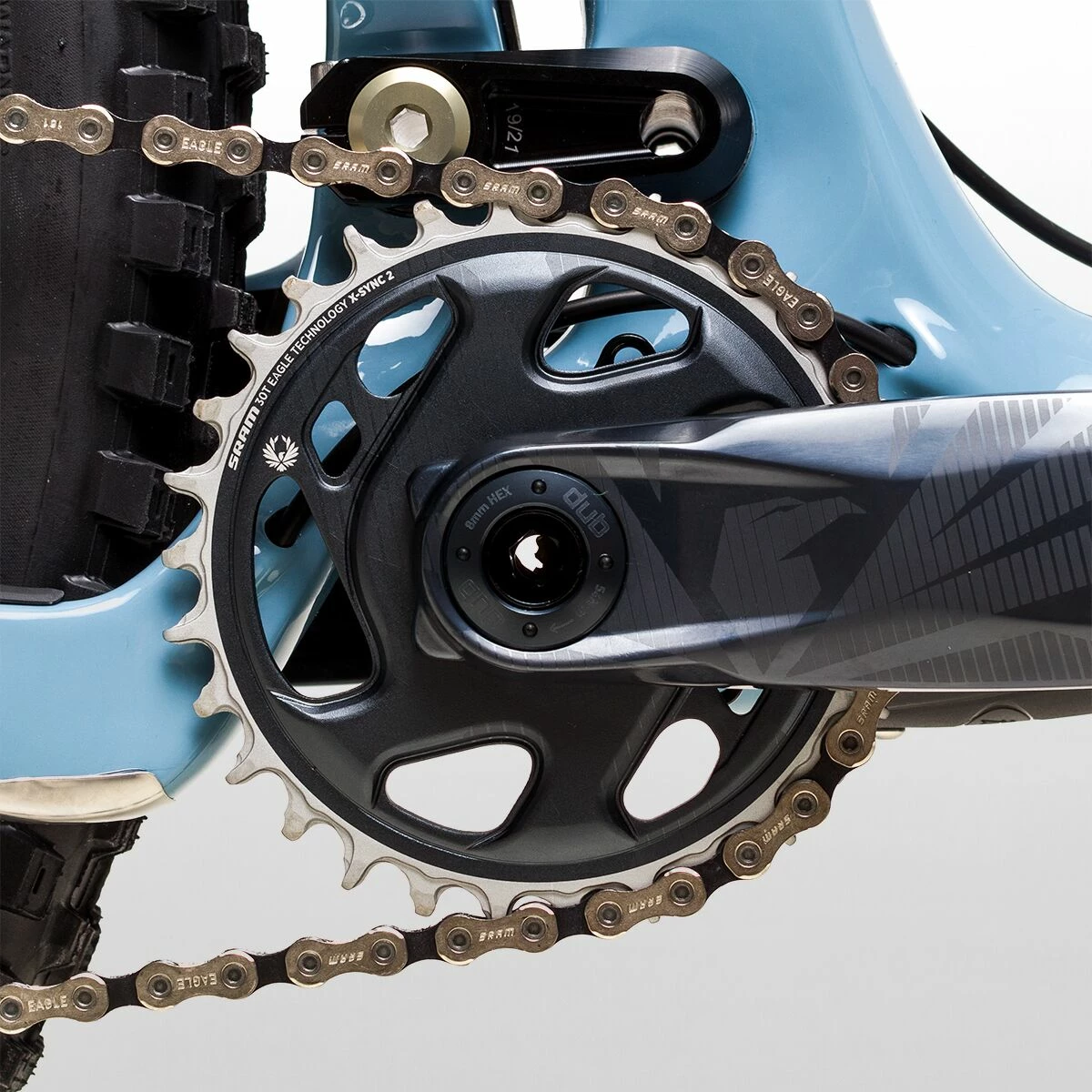

• Crankset: SRAM GX
• Chainring Sizes: 30t
• Crank Arm Length: [small, medium] 170mm, [large, x-large] 175mm
• Bottom Bracket: SRAM DUB, BSA
• Cassette: SRAM XG-1275
• Cassette Range: 10-52t
• Chain: SRAM GX Eagle

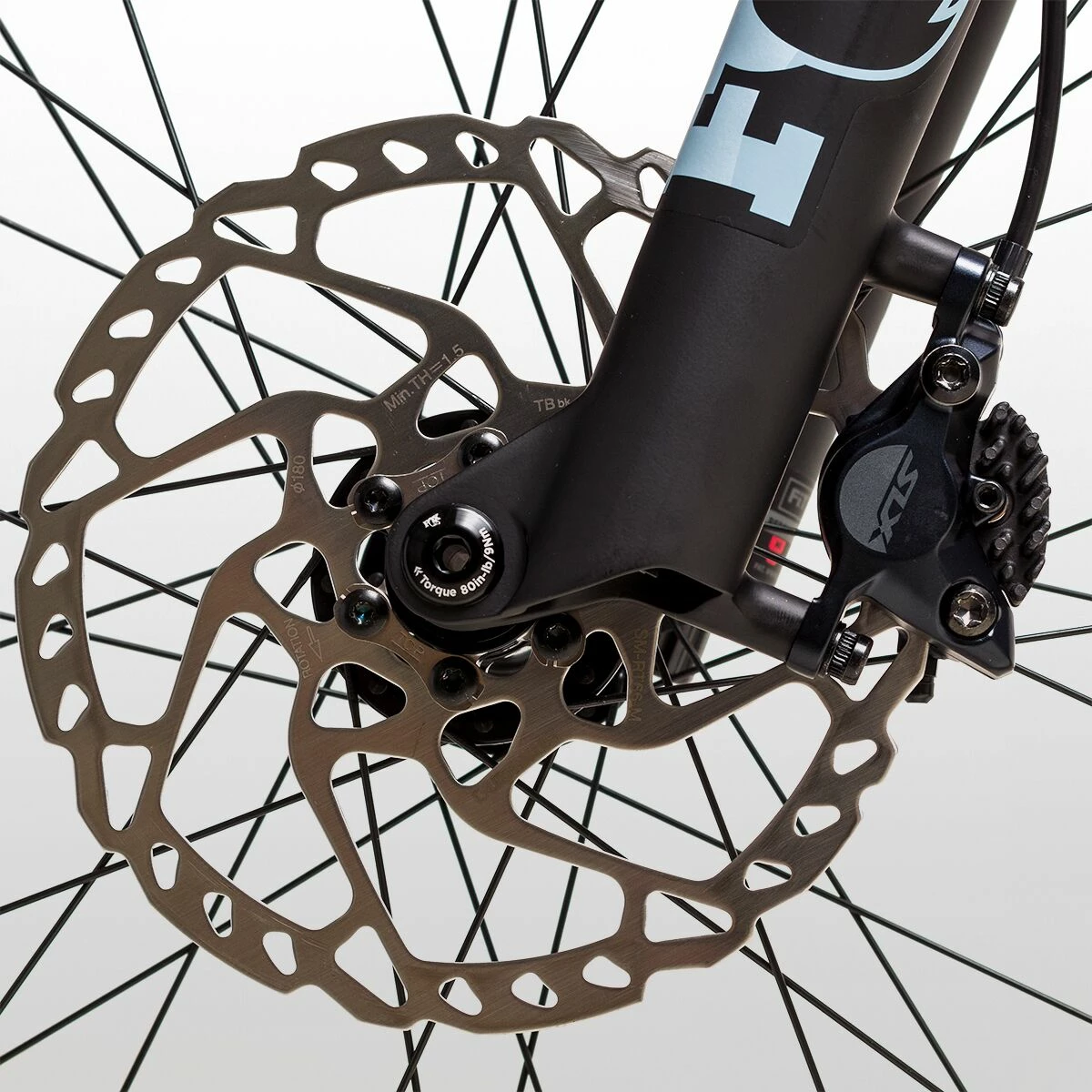

• Brakeset: Shimano SLX
• Brake Type: 2-piston hydraulic

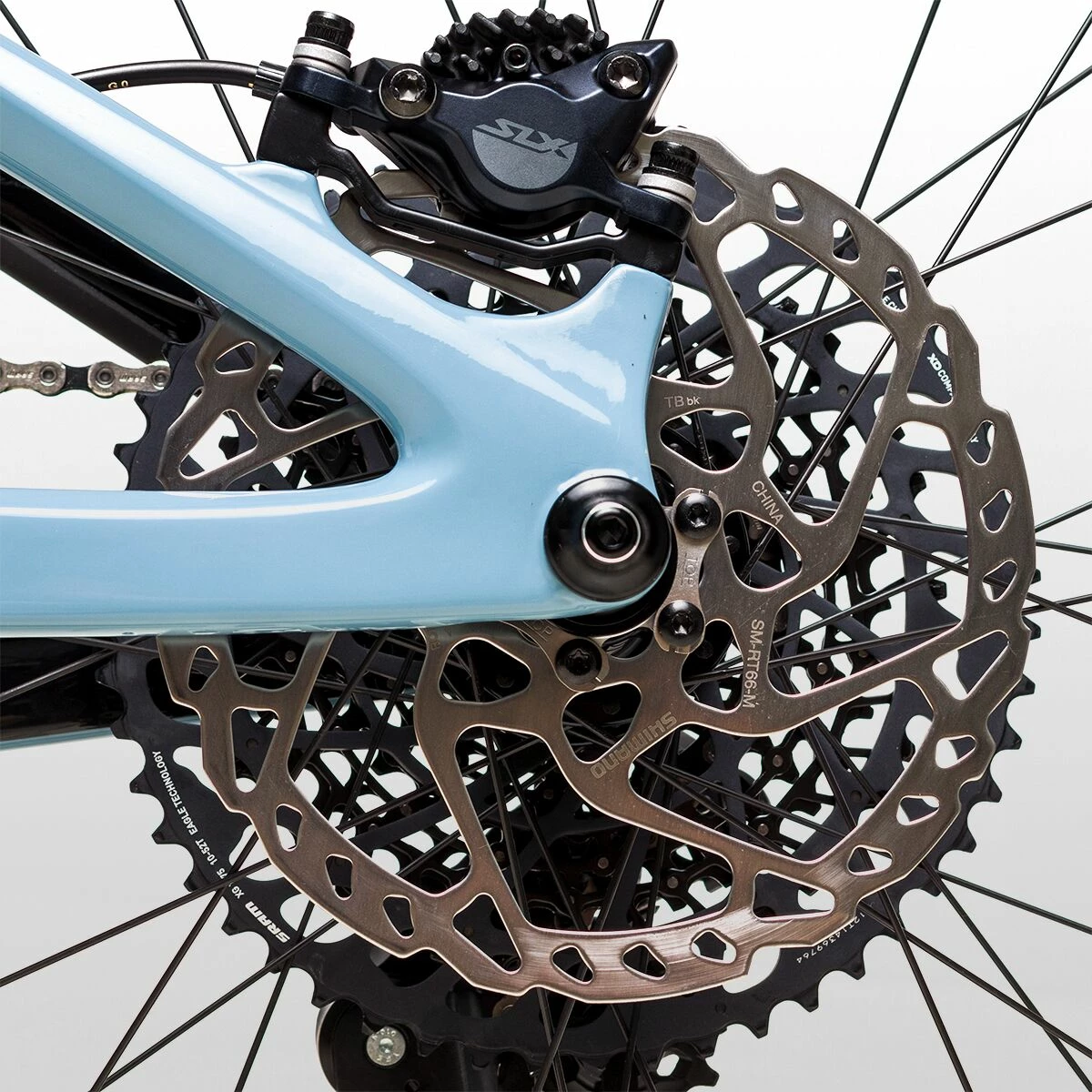

• Rotors: Shimano SLX 6-bolt
• Rotor Size: [front, rear] 180mm
• Handlebar: Ibis Hi Fi
• Handlebar Width: 800mm

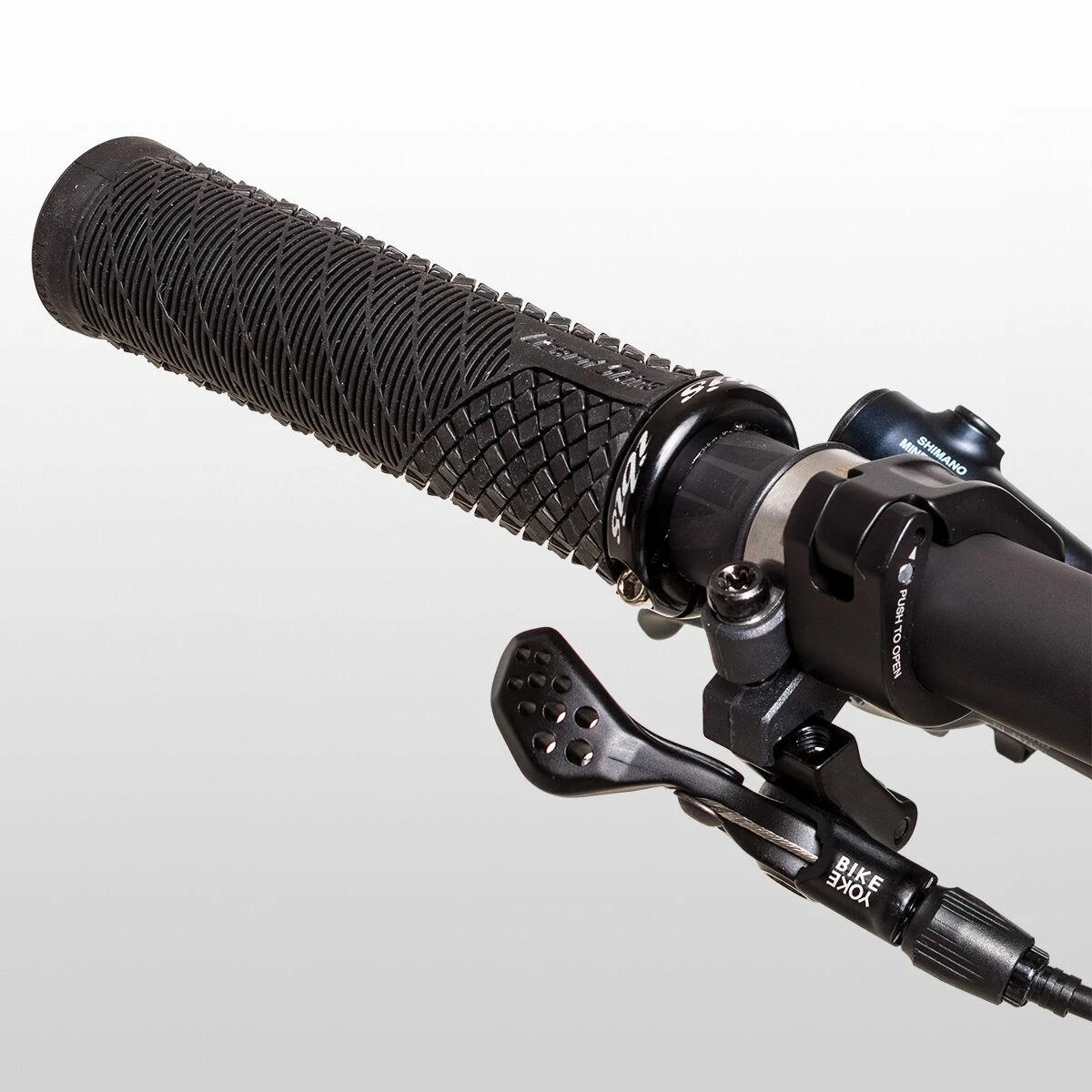

• Grips: Lizard Skin Charger

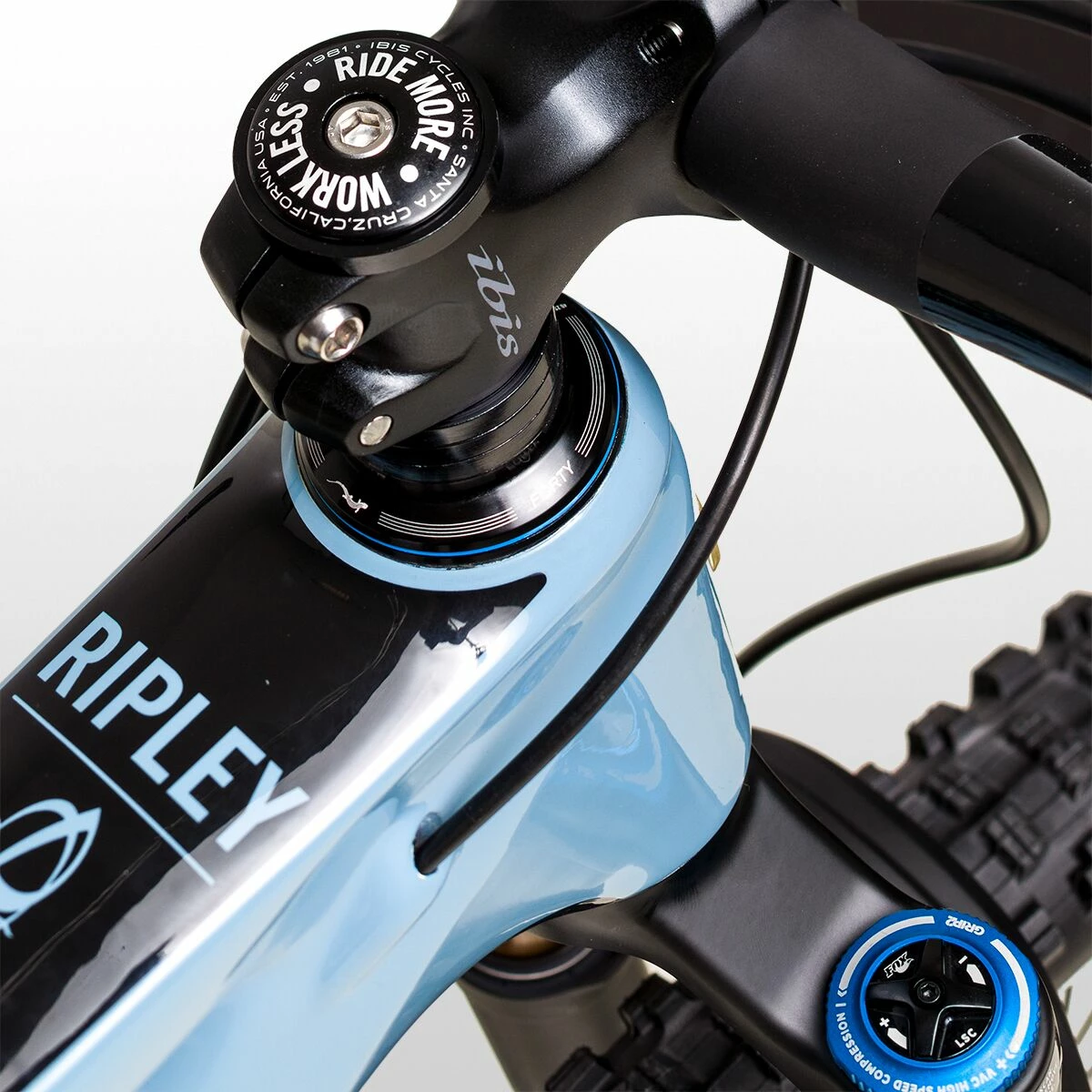

• Stem: Ibis 31.8mm
• Stem Length: [small, medium] 40mm, [large, x-large] 50mm

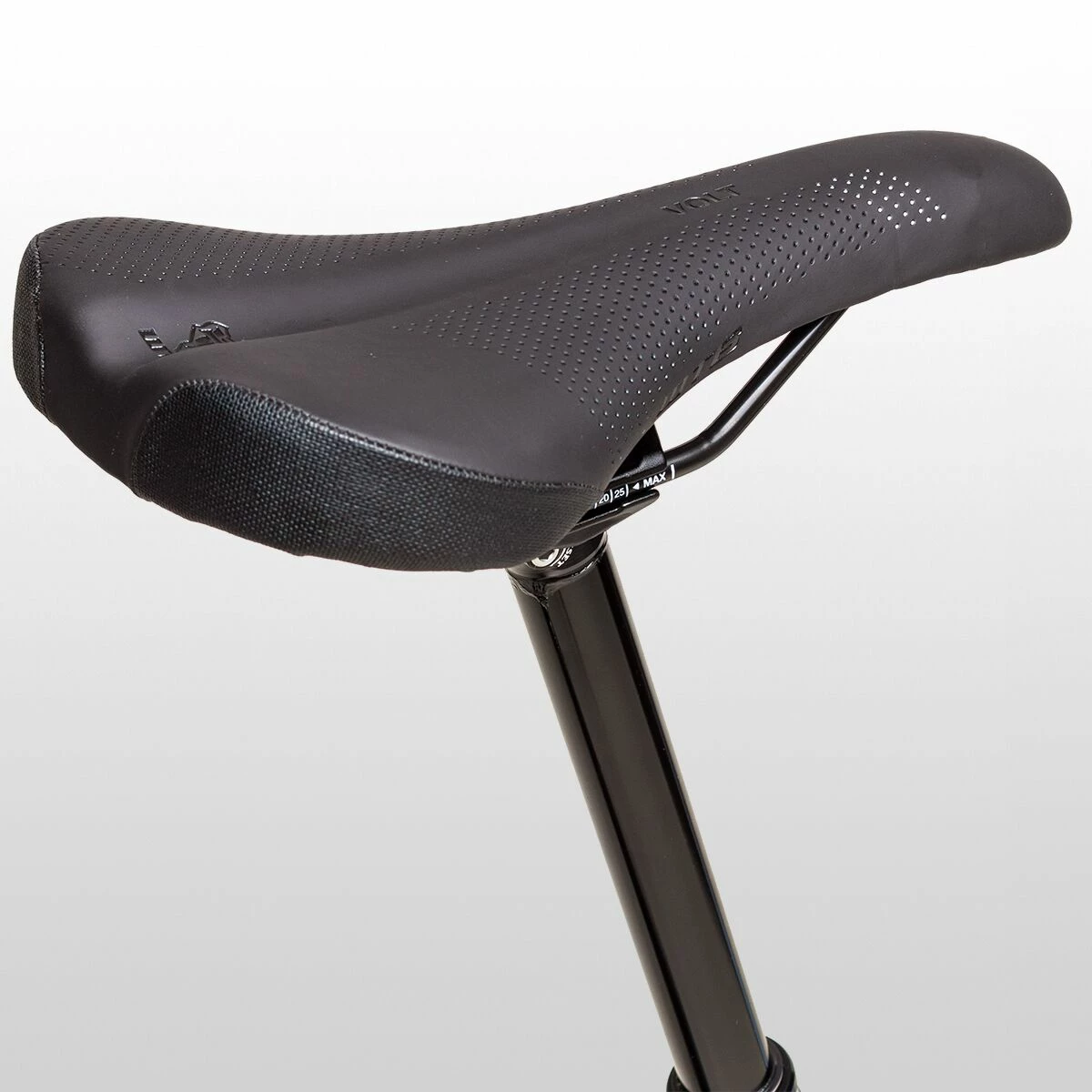

• Saddle: WTB Volt
• Seatpost: Bike Yoke Revive
• Seatpost Length: [small] 125mm, [medium] 160mm, [large, x-large] 185mm
• Wheelset: Ibis S35 Aluminum
• Hubs: Ibis
• Front Axle: 15 x 110mm
• Rear Axle: 12 x 148mm
• Tire Clearance: 29 x 2.6in
• Tires: [front] Maxxis DHRII EXO, TR, [rear] Maxxis Dissector EXO, TR
• Tire Size: [front, rear] 29 x 2.4in
• Pedals: not included
• Extras: downtube protector, chainstay protector
• Claimed Weight: [medium] 28.7lb, [large] 29.6lb
• Activity: mountain biking, trail, cross-country
• Manufacturer Warranty: [frame] 7 years, [wheels] 7 years, [hubs] 2 years
